CUS-200LD Serisi Single Output 79-153W Low Profile AC-DC Güç Kaynağı


	Giriş çalışma gerilimi 90-305VAC (47-63Hz)
	Convection or Conduction Cooled d (Mounted on a 2mm thick aluminium plate 400x400mm)
	Up to 206W Peak Power Capability
	Low 31mm Height
	Operating Temperature -25°C to +70°C. Start up at -40°C
	Power Factor Meets EN61000-3-2 (Typical PF 0.95/0.9)
	Overcurrent Protection > 101% of peak current rating
	Çıkış gerilimleri; 3.3, 4.2, 7.5, 12, 15, 24, 28, 48Vdc
	Fan-Less Operation
	Capable of Driving Dynamic LED Displays
	Fits In Low Profile Signage
	Suitable for Outdoor Use
	High Efficiency, up to 90%

Uygulama Alanları

	Açıklama
Designed for light industrial, LED signage, broadcast, IT, and test & measurement equipment, the CUS200LD can deliver up to 120W convection, 150W conduction cooled and 206W peak power. The series is available with nominal output voltages of 5V, 7.5V, 12V, 15V, 24V and 48Vdc. The low 31mm height makes it suitable for mounting in LED displays.

Teknik Broşür, Manuel ve Dosyalar

Benzer Ürünler

	CUS200LD Datasheet
	CUS200LD Installation Manual
	CUS200LD Outline Drawing (PDF)
	CUS200LD 3D Drawing (Step file)
	CUS200LD 3D Drawing (Step file)
	Technical files for the CUS-LD Series

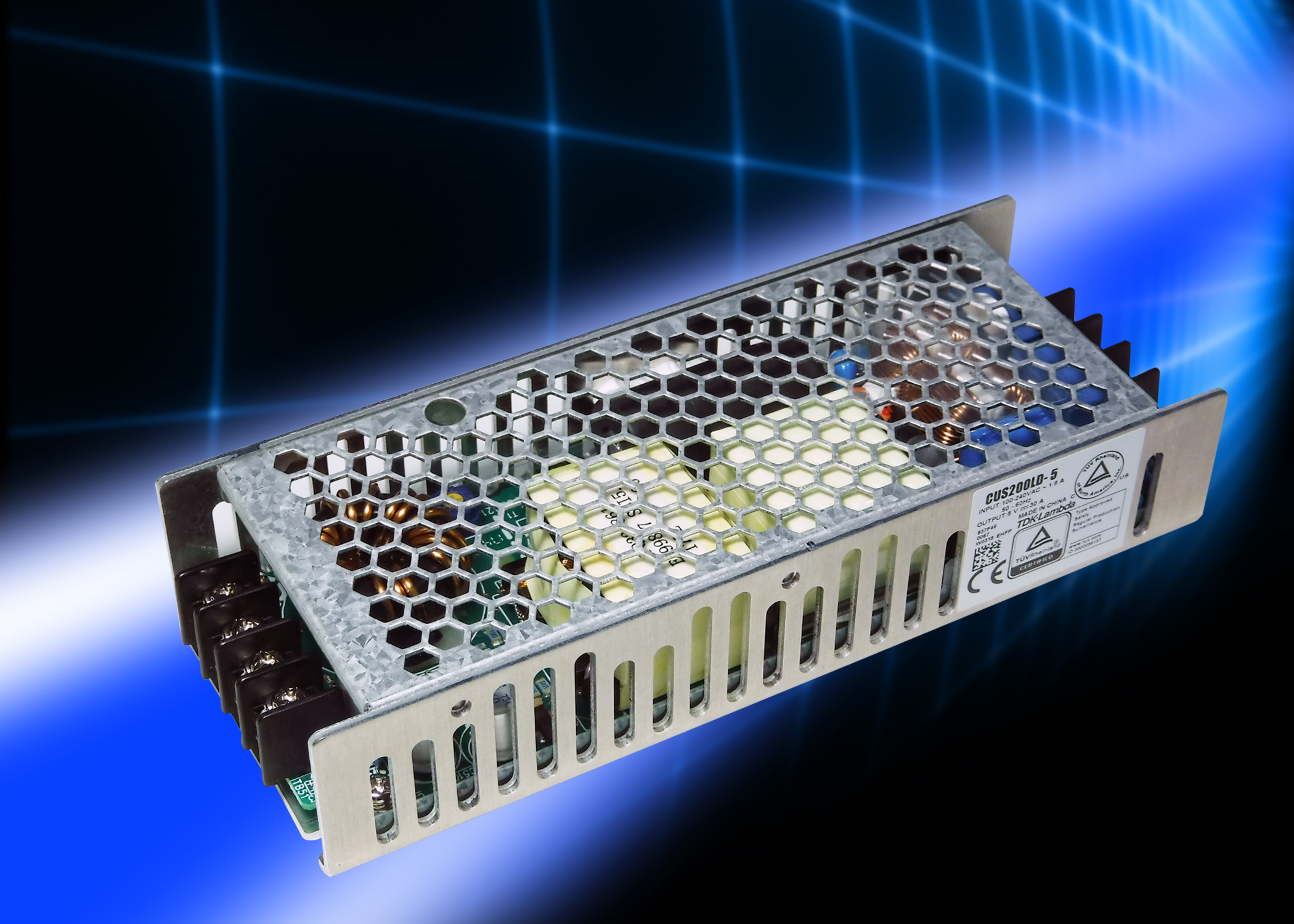

	Ürün resmi
	AC-DC Broşür ve Kataloglar

Ürün Listesi

Model Adı

Çıkış Gücü Convection/Conduction

Çıkış Gerilimi

Gerilim Ayar Aralığı

Çıkış Akımı Convection/Conduction

Construction

Datasheet

CUS200LD-3	79.2W / 99W	12V	None	10A / 12.5A	Open Frame
CUS200LD-4	100.8W / 126W	12V	None	12.5A / 12.5A	Open Frame
CUS200LD-5	120W / 150W	12V	None	12.5A / 12.5A	Enclosed
CUS200LD-7R5	120W / 150W	12V	None	12.5A / 12.5A	Open Frame
CUS200LD-12	120W / 150W	12V	None	12.5A / NA	Enclosed
CUS200LD-15	120W / 150W	15V	None	8A / 10A	Open Frame
CUS200LD-24	150W / 150W	15V	None	10A / 10A	Open Frame
CUS200LD-28	150W / 150W	15V	None	10A / 10A	Enclosed
CUS200LD-48	150W / 150W	15V	None	10A / 10A	Open Frame
