CUS-100ME Serisi Single Output 2 x 4” 100W Medical AC-DC Güç Kaynağı |
| |
| |
|
|
| |
|
|
Giriş çalışma gerilimi 85 - 264VAC (47 - 440Hz (1)). Derate linearly to 90% load from 90 to 85VAC input |
|
100W Convection Rating |
|
75W With 1m/s Airflow at 85°C Ambient |
|
ITE & Medical Certifications (2 x MOPP) |
|
Suitable for Class I and Class II installations |
|
Class B Conducted and Radiated EMI |
|
Çıkış gerilimleri: 12V, 15V, 18V, 24V, 28V, 36V ve 48V |
|
Short Circuit Protection 110 - 190%. Hiccup mode, automatic recovery |
|
Overvoltage Protection Latching (unit shutdown), cycle AC input to reset |
|
Efficiency Up to 94% |
|
Active Average Efficiency >87% |
|
Operating Temperature -20°C to +85°C, see derating curves for operation above +50°C (2) |
| |
|
| |
|
| Note (1): For operation at 400-440Hz, please contact Technical Sales |
| Note (2): See website for full derating curves and all case styles |
|
 |
|
|
| |
|
Açıklama |

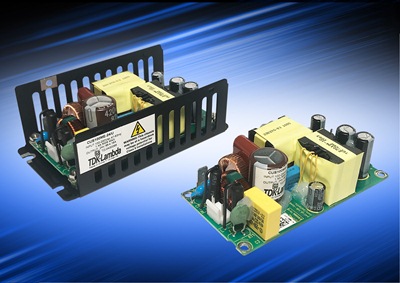

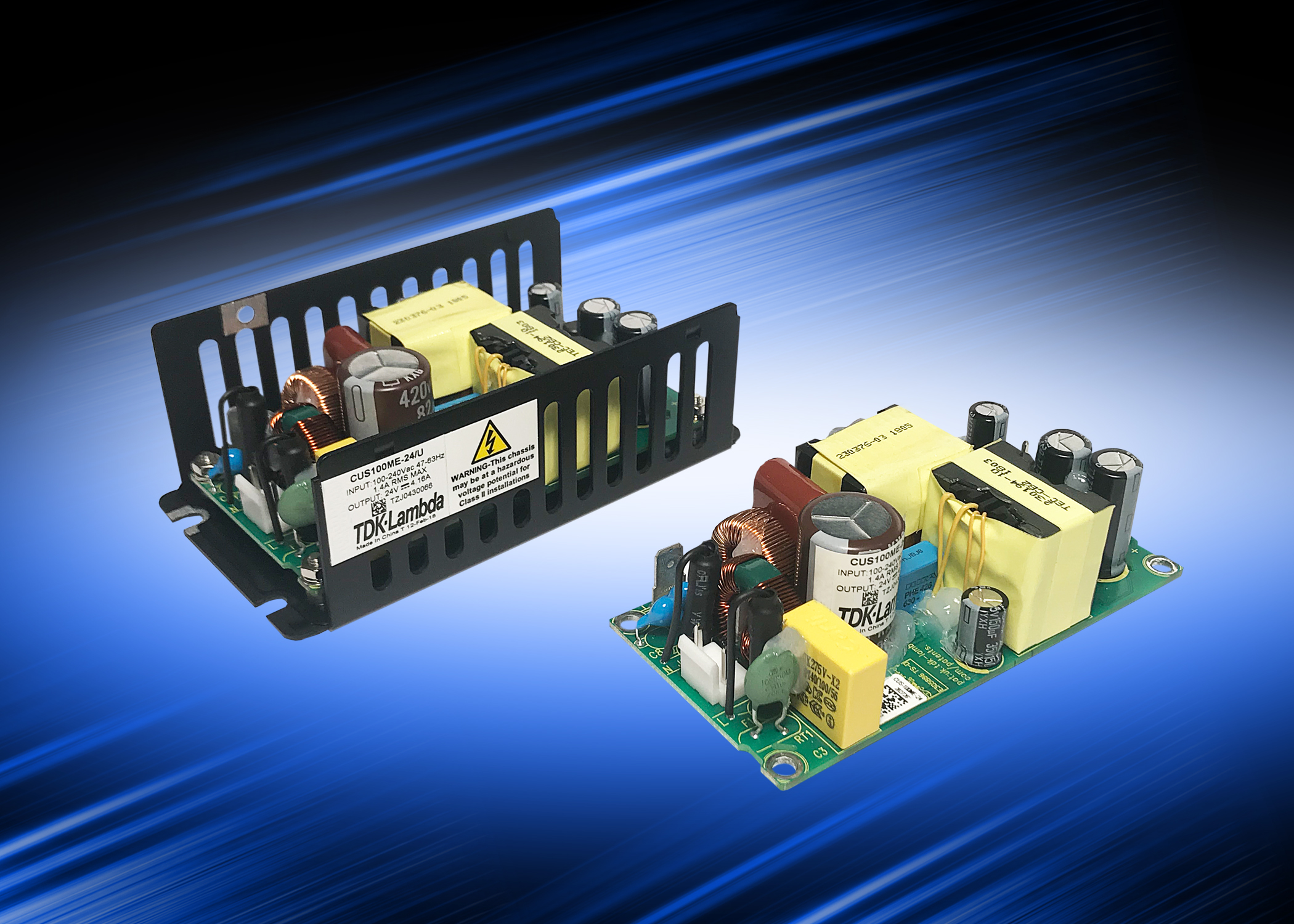

CUS100ME is a single output 2” x 4” AC/DC supply with IEC60601-1 3rd edition medical approval as well as IEC60950-1 and is available in four mechanical formats: Open pcb, pcb with baseplate, U channel and U channel with cover.
The power supply is rated at 100W maximum output power.
With baseplate and U channel conduction cooling assistance this rating can be achieved at up to 70°C ambient temperature and with forced air cooling of 1m/s operation up to 85°C ambient temperature is possible.
It meets class B levels for both conducted and radiated emi and is
compliant with EN60601-1-2:2015 Edition 4 immunity requirements.
CUS100ME is suitable for both Class I and Class II installations, is available with 12V to 48V outputs and is ideal for medical and general applications that require silent operation with no fan noise.
Efficiency is up to 94%, and off load power consumption is less than 0.5W |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
|
| |
|
|
Ürün Listesi |
Model Adı |
Çıkış Gücü |
Çıkış Gerilimi
|
Gerilim Ayar Aralığı |
Çıkış Akımı |
Construction |
Datasheet |
|
CUS100ME-12 |
100W |
12V
|
12 - 13.2V
|
8.33A |
Open Frame / Enclosed (opt.) |
|
CUS100ME-15 |
100W |
15V |
15 -16.5V |
6,66A |
Open Frame / Enclosed (opt.) |
|
CUS100ME-18 |
100W |
18V |
18 -19.8V |
5.55A |
Open Frame / Enclosed (opt.) |
|
CUS100ME-24 |
100W |
24V |
24 - 26.4V |
4,16A |
Open Frame / Enclosed (opt.) |
|
CUS100ME-28 |
100W |
28V |
28 -30.8V |
3,57A |
Open Frame / Enclosed (opt.) |
|
CUS100ME-36 |
100W |
36V |
36 - 39.6V |
2,77A |
Open Frame / Enclosed (opt.) |
|
CUS100ME-48 |
100W |
48V |
48 - 50V |
2.08A |
Open Frame / Enclosed (opt.) |
|
|
|
|
|
|
| |
|
|
| |
|
|
