CUS-150M Serisi Single Output 2 x 4” 150W AC-DC Güç Kaynağı




Giriş çalışma gerilimi 90-305VAC (47-63Hz)
Compact 2x4 inch Footprint
Medical Approval with 2 x MoPP Isolation
Suitable for Class I and Class II (no earth) Installations
150W Convection Cooled Rating (for U channel)
Class B Conducted and Radiated EMI
Options for U channel, Cover and Top Fan
-20°C to +85°C (70°C maximum for fan version /F), see derating curves for operation above +50°C
Çıkış gerilimleri; 12, 15, 18, 24, 28, 36, 48Vdc
Short Circuit Protection 110 - 170%. Hiccup mode, automatic recovery
Overvoltage Protection Latching (unit shutdown), cycle AC input to reset
Efficiency Up to 94%
Suitable for B and BF Type Medical Equipment
Suitable for High Ambient Temperature Environments
Uygulama Alanları


Açıklama

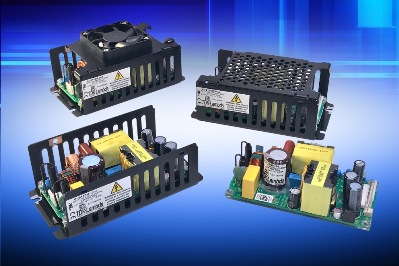

CUS150M is a single output 2” x 4” AC/DC supply with  IEC60601-1 3rd edition medical approval as well as IEC60950-1 and is available and is available in five mechanical formats: Open pcb, pcb with baseplate, U channel, U channel with cover and U channel with cover and integral top mounted cooling fan. Open pcb versions provide 150W output power with forced air cooling of 1m/s, and 120W at 40 deg C ambient with convection cooling.

U channel and baseplate versions provide 150W at up to 50 deg C ambient without any forced air cooling when mounted to a chassis.

It meets class B levels for both conducted and radiated emi and is compliant with EN60601-1-2:2015 Edition 4 immunity requirements.

CUS150M is suitable for both Class I and Class II installations, is available with 12V to 48V outputs and is ideal for medical and general applications that require silent operation with no fan noise.

Efficiency is up to 94%, and off load power consumption is less than 0.5 W.


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler




Ürün Listesi
Model Adı
Çıkış Gücü Convection/Forced Air
Çıkış Gerilimi
Gerilim Ayar Aralığı
Çıkış Akımı Convection/Forced Air
Construction
Datasheet
CUS150M-12
120W / 150W
12V
None
10A / 12.5A
Open Frame
CUS150M-12/U
150W / 150W
12V
None
12.5A / 12.5A
Open Frame
CUS150M-12/A
150W / 150W
12V
None
12.5A / 12.5A
Enclosed
CUS150M-12/B
150W / 150W
12V
None
12.5A / 12.5A
Open Frame
CUS150M-12/F
150W / NA
12V
None
12.5A / NA
Enclosed
CUS150M-15
120W / 150W
15V
None
8A / 10A
Open Frame
CUS150M-15/U
150W / 150W
15V
None
10A / 10A
Open Frame
CUS150M-15/A
150W / 150W
15V
None
10A / 10A
Enclosed
CUS150M-15/B
150W / 150W
15V
None
10A / 10A
Open Frame
CUS150M-15/F
150W / NA
15V
None
10A / NA
Enclosed
CUS150M-18
120W / 150W
18V
None
6.66A / 8.33A
Open Frame
CUS150M-18/U
150W / 150W
18V
None
8.33A / 8.33A
Open Frame
CUS150M-18/A
150W / 150W
18V
None
8.33A / 8.33A
Enclosed
CUS150M-18/B
150W / 150W
18V
None
8.33A / 8.33A
Open Frame
CUS150M-18/F
150W / NA
18V
None
8.33A / NA
Enclosed
CUS150M-24
120W / 150W
24V
None
5A / 6.25A
Open Frame
CUS150M-24/U
150W / 150W
24V
None
6.25A / 625A
Open Frame
CUS150M-24/A
150W / 150W
24V
None
6.25A / 6.25A
Enclosed
CUS150M-24/B
150W / 150W
24V
None
6.25A / 6.25A
Open Frame
CUS150M-24/F
150W / NA
24V
None
6.25A / NA
Enclosed
CUS150M-28
120W / 150W
28V
None
4.28A / 5.36A
Open Frame
CUS150M-28/U
150W / 150W
28V
None
5.36A / 5.36A
Open Frame
CUS150M-28/A
150W / 150W
28V
None
5.36A / 5.36A
Enclosed
CUS150M-28/B
150W / 150W
28V
None
5.36A / 5.36A
Open Frame
CUS150M-28/F
150W / NA
28V
None
5.36A / NA
Enclosed
CUS150M-36
120W / 150W
36V
None
3.33A / 4.16A
Open Frame
CUS150M-36/U
150W / 150W
36V
None
4.16A / 4.16A
Open Frame
CUS150M-36/A
150W / 150W
36V
None
4.16A / 4.16A
Enclosed
CUS150M-36/B
150W / 150W
36V
None
4.16A /4.16A
Open Frame
CUS150M-36/F
150W / NA
36V
None
4.16A / NA
Enclosed
CUS150M-48
120W / 150W
48V
None
2.5A / 3.2A
Open Frame
CUS150M-48/U
150W / 150W
48V
None
3.2A / 3.2A
Open Frame
CUS150M-48/A
150W / 150W
48V
None
3.2A / 3.2A
Enclosed
CUS150M-48/B
150W / 150W
48V
None
3.2A / 3.2A
Open Frame
CUS150M-48/F
150W / NA
48V
None
3.2A / NA
Enclosed

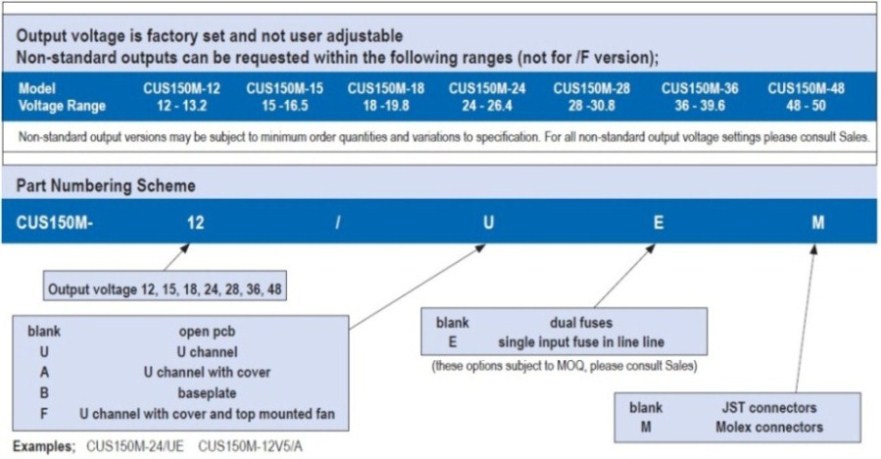

Açıklama

Opsiyonlar
Suffix
Description
Blank
Open PCB
/U
U-Channel
/A
U-Channel with cover
/B
Baseplate
/F
U-Channel with cover and top mounted fan
