ZWS-240RC-24 Serisi
240W OVC III PCB-Type Tek çıkışlı AC-DC Güç Kaynağı


Genel Özellikler :
Çalışma gerilimi 85-265VAC (47 - 63Hz)
Çıkış 24VDC 10A
Certified to IEC/EN62477-1 OVC III
12 yıl e-cap ömrü
Doğal soğutmalı
İlave soğutmaya ihtiyaç duymaz
Active Power Factor Correction - Designed to meet
  EN/IEC61000-3-2
-10°C to +70°C, derate linearly to 30% load from +50°C to

+70°C
High efficiency and low standby power

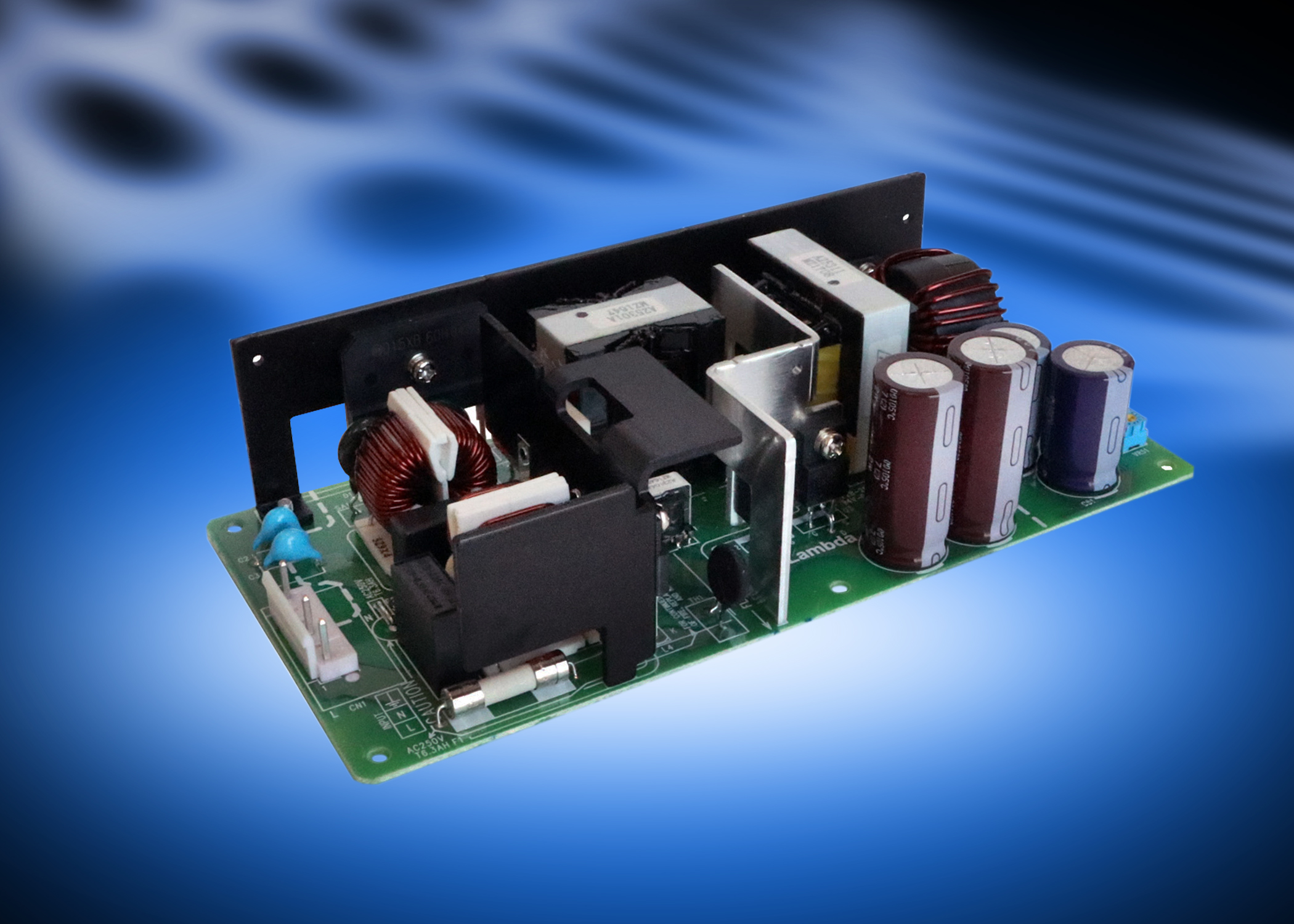

The ZWS240RC-24 open frame power supply is suitable for use in fixed robot and machinery controllers that are directly wired to the incoming distribution panel.  The model has certification to the IEC/EN62477-1 standard (Over Voltage Category III), is convection cooled and is backed by a five year warranty. This conservatively rated product also has 12+ year electrolytic capacitor lifetimes, ideal for industrial equipment requiring long-term reliable operation

Uygulama Alanları


Teknik Broşür, Manuel ve Dosyalar
Benzer Ürünler


Specifications
Series Name
ZWS-RC Series
Model Name
ZWS240RC
Input voltage range
85~265VAC
Rated output voltage
24VDC
Efficiency
90%
OutputPower
240W
Hold-up Time (typ)
31ms
Cooling
Convection cooling
Operating ambient temperature
-10~70?(with temperature derating)
Leakage Current
Less than 0.5mA
Line DIP
SEMI-F47 (200VAC Line only)
EMI noise requirements
EN55011/EN55032-B, FCC-ClassB, VCCI-B(CE)
EN55011/EN55032-A, FCC-ClassA, VCCI-A(RE)
Safety standards
UL60950-1, CSA60950-1, EN60950-1,
EN62477-1 (OVC?)
Dimensions(W x H x D mm)
84×42×180

Ürün Listesi
Model Adı
Çıkış Gücü
Çıkış Volt/Akım
Overvoltage
Construction
Data Sheet
ZWS240RC-24
240W
24V / 10A
6 - 8V
Open Frame pcb
