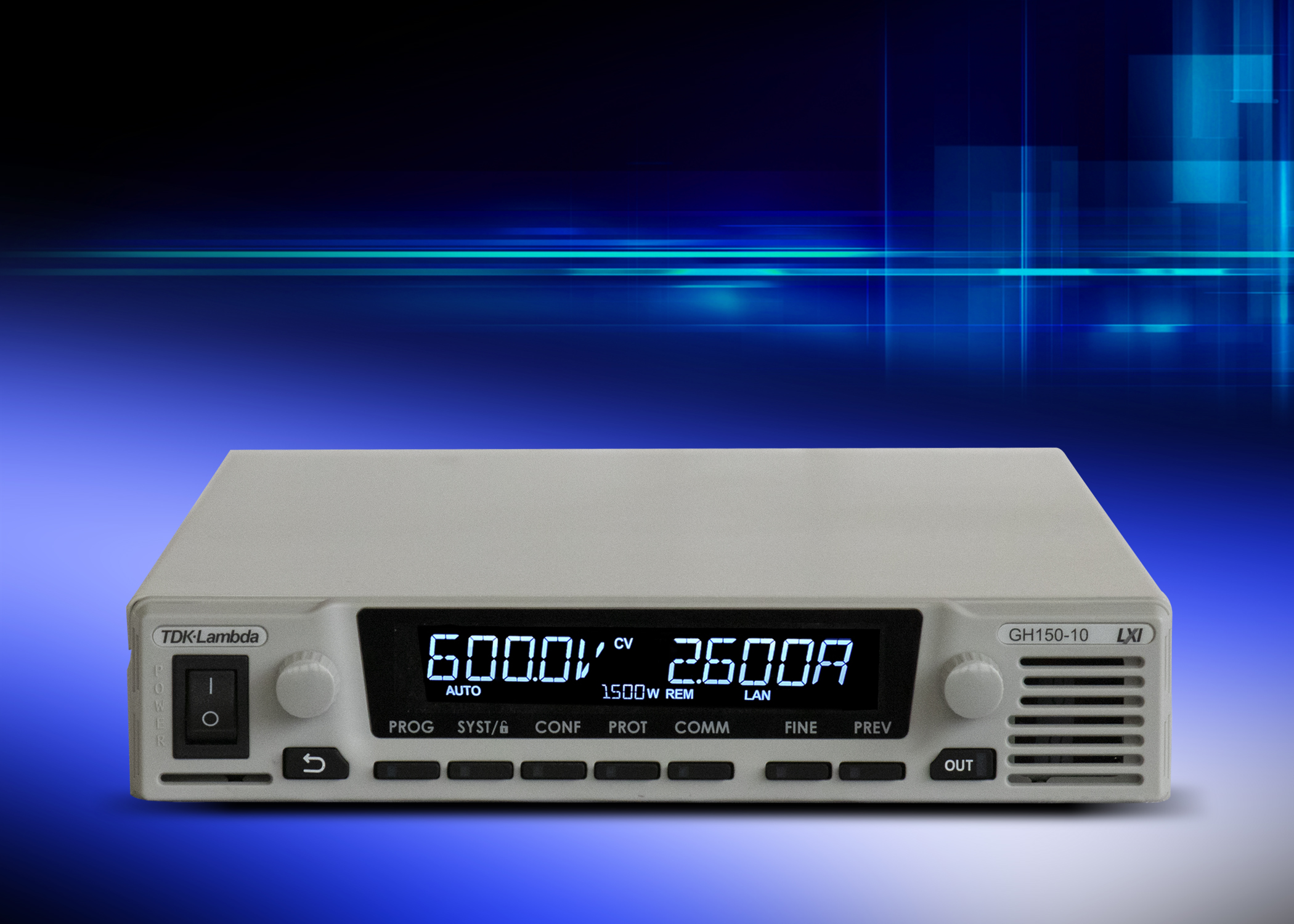

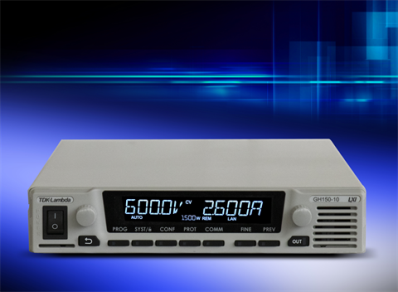

Leading DC Programmable power density 1.5kW In 1U half package |
|
Light weight <3.5 Kg |
|
Wide Range of popular worldwide AC inputs |
|
Output Voltage up to 600V, Current up to 150A |
|
Built-in LAN (  1.5), USB, RS-232/RS-485 Interface |
|
Last-Setting Memory |
|
Auto-Re-Start / Safe-Start: user selectable |
|
Blank Front Panel Option Available |
|
Arbitrary Waveform Generator with Auto-Trigger Capability |
|
Store up to 100 steps into four internal memory cells |
|
High-speed Programming |
|
Constant Voltage/Constant Current/Constant Power operation modes |
|
Programmable Slew Rate Control (Vout/Iout) |
|
Internal Resistance programming |
|
Local / Remote Sensing - software controlled |
|
Fan speed profile controlled by ambient temperature and load |
|
IBuilt-in Isolated Analog Programming and Monitoring |
|
Auto paralleling Scalable Master-Slave Operation up to four identical units |
|
Certified LabWindows™/CVI, LabVIEW™, and IVI Drivers |
|
Worldwide Safety Agency Approvals; CE marked for LVD, emc and RoHS compliance |
