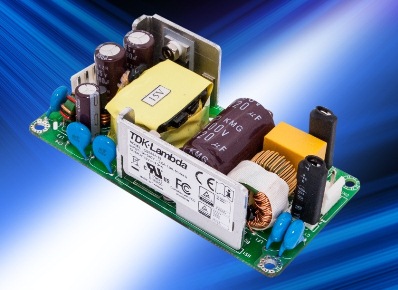

CSW Serisi Tek çıkışlı 40-65W Endüstriyel AC-DC Güç Kaynağı |
| |
| |
|
|
| |
|
|
Giriş çalışma gerilimi 90-305VAC (47-63Hz) |
|
Class 2 24V model to UL1310 |
|
<150mW Off-Load Power Consumption |
|
DOE Efficiency Level VI, ErP Tier 2 |
|
DIN Rail Mount Option |
|
Standby Energy Saving |
|
Less Power Consumed |
|
-10°C to +70°C derate linearly to 50% load from 50°C to 70°C* |
|
Çıkış gerilimleri; 5, 12, 15, 18, 24, 28, 48, 54Vdc |
|
Overcurrent Protection 105 - 160%, Auto-Recovery |
| |
|
| |
|
| |
|
| |
|
|
 |
|
|
| |
|
Açıklama |

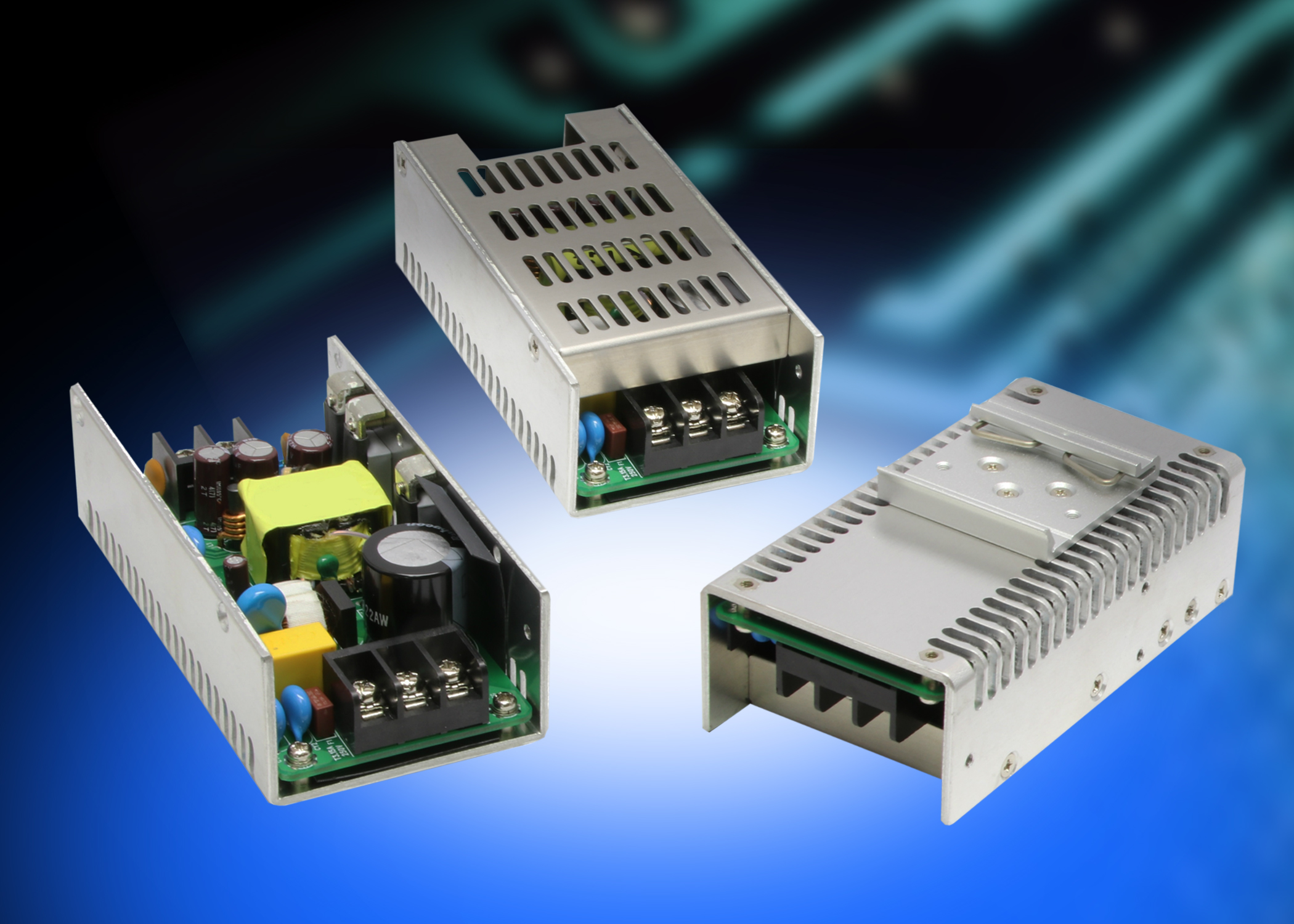

The CSW65 series of industrial AC-DC power supplies are available in three package styles; U-channel, enclosed and DIN rail mounting. The series can accept a wide 90 to 305Vac, making it suitable for use with 115, 230 and 277Vac nominal inputs. Output voltages range from 5 to 54V with output power levels of up to 65W. The CSW meets efficiency level VI and has a low off-load power consumption of <150mW. |
|
| |
|
|
Teknik Broşür, Manuel ve Dosyalar |
|
Benzer Ürünler |
|
|
| |
| |
| |
|
| |
|
|
Ürün Listesi |
Model Adı |
Çıkış Gücü |
Çıkış Gerilimi
|
Gerilim Ayar Aralığı |
Çıkış Akımı |
Construction |
Datasheet |
|
CSW65-5 |
40W |
5V
|
None
|
8.0A |
Open Frame |
|
CSW65-12 |
65W |
12V |
None |
5.42A |
Open Frame |
|
CSW65-15 |
65W |
15V |
None |
4.34A |
Open Frame |
|
CSW65-18 |
65W |
18V3 |
None |
3.62A |
Open Frame |
|
CSW65-24 |
65W |
24V |
None |
2.71A |
Open Frame |
|
CSW65-28 |
65W |
28V |
None |
2.33A |
Open Frame |
|
CSW65-48 |
65W |
48V |
None |
1.36A |
Open Frame |
|
CSW65-54 |
65W |
54V |
None |
1.21A |
Open Frame |
|
|
|
|
|
| |
|
| |
|
Opsiyonlar |
Suffix |
Description |
Blank |
U-Channel |
/A |
U-Channel & Cover |
/D |
U-Channel, Cover & DIN Rail Bracket |
|
|
|
|
